Air hoists
Ingersoll Rand air hoists have been offering lifting solutions in the industry worldwide since the beginning of the 19th century. Ingersoll Rand offers a wide selection of air chain hoists in which it provides hoists from 1/8 to 100 tons. We offer hoists for extremely fast work applications for the food industry and challenging environments such as mines, shipyards, power plants, cement plants, refineries and various assembly lines. Ingersoll Rand hoists have a large selection of accessories.
CLK hoist
Compact industrial air chain hoist.
Standard advantages:
- low weight and robust design
- FEM/ISO Mechanism cerificate 1Am/M4
- highly efficient 100% reversible multi-lamellar motor
- hoist has upper and lower limit switch
- automatic brake
- corrosion resistant chain
- "best in class" noise level <75dB
- hoist is equipped with a main air emergency shut-off and a chain storage box
- hoist may operate in non-sparking ATEX areas in zone 2: Ex II 3 GD c IIB135CX

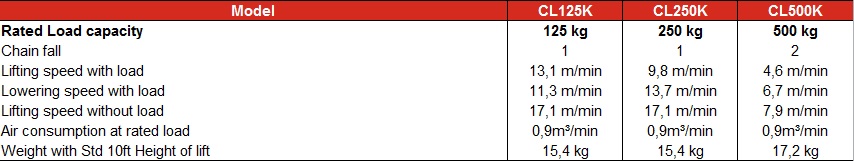

The table shows which of the versions are available:

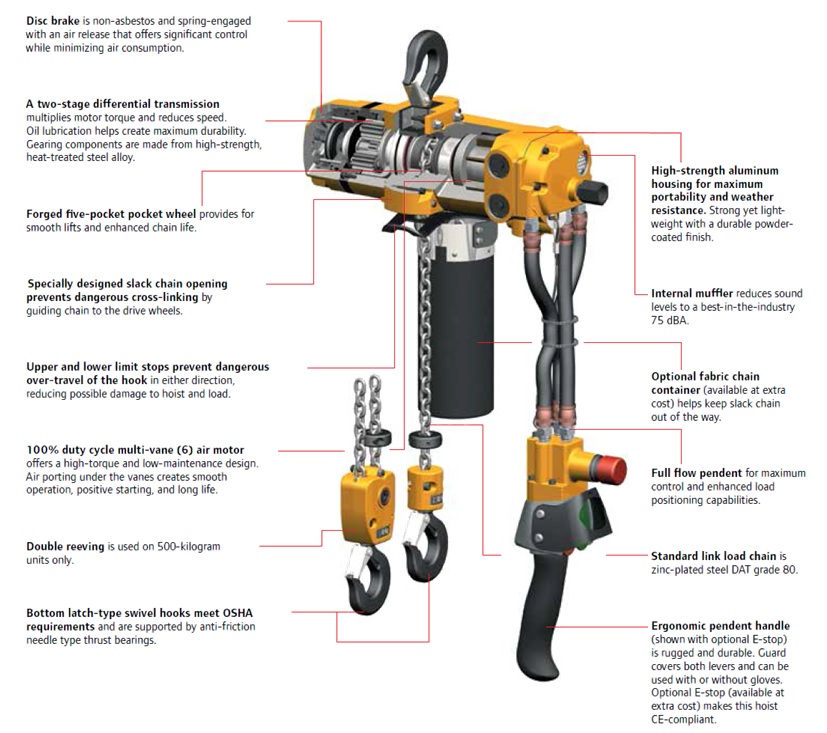

Detailed image of CLK hoist:

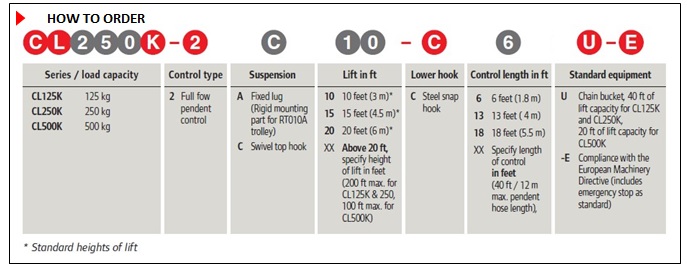

How to easily order a hoist? Ingersoll Rand uses the following code notation for hoist versions. You can contact our advisor for additional help.
MLK hoists
Extremely robust, high-speed industrial hoists
Standard advantages:
- designed for a variety of harsh environments and potentially explosive environments
- they can be used for a long time with low maintenance costs
- robust lamellar motor
- limit switches
- automatic brake
- galvanized chain
- standard lift 3 meters
- ATEX certificate for use in zone 2: Ex II 3 GD c IIB135CX
- CE package of European models includes standard of main air emergency shut-off switch (except for hoists traction control)

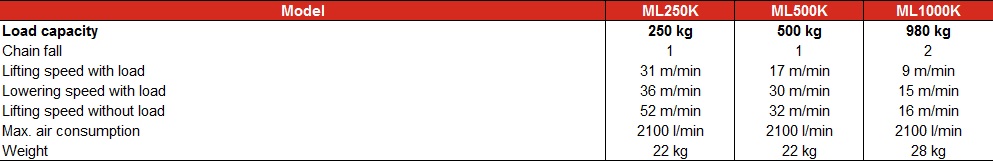

The table shows which of the versions are available:

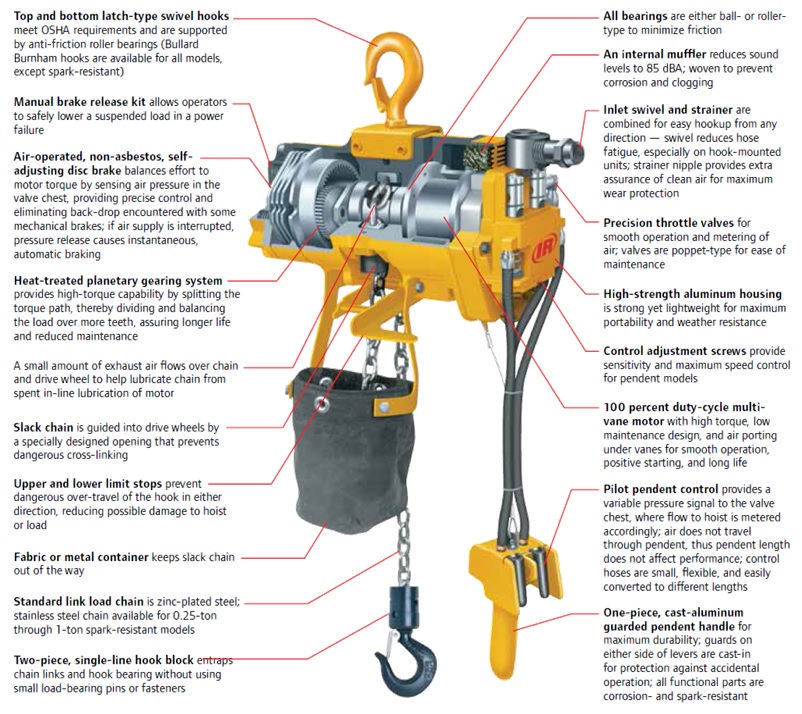

Detailed image of MLK hoist:

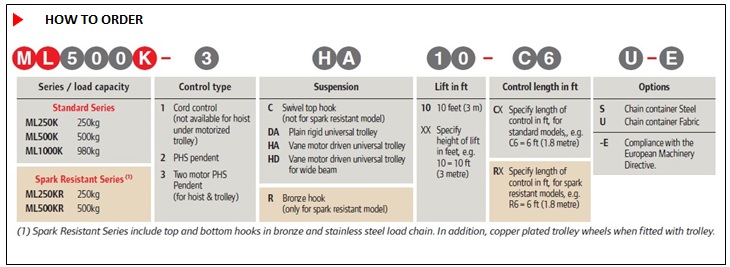

How to easily order a hoist? Ingersoll Rand uses the following coding for hoist versions. You can contact our advisor for additional help.
The video below shows the actual operation of the CLK air hoist.
